Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Màng dây dệt galvanized | Ứng dụng: | màn cửa sổ, tấm chắn an toàn, hạt sàng, bộ lọc dầu, màn rung, lọc chất lỏng và khí. |
|---|---|---|---|
| Làm nổi bật: | galvanized woven wire mesh,wire mesh for filtration,woven wire cloth screening |
||

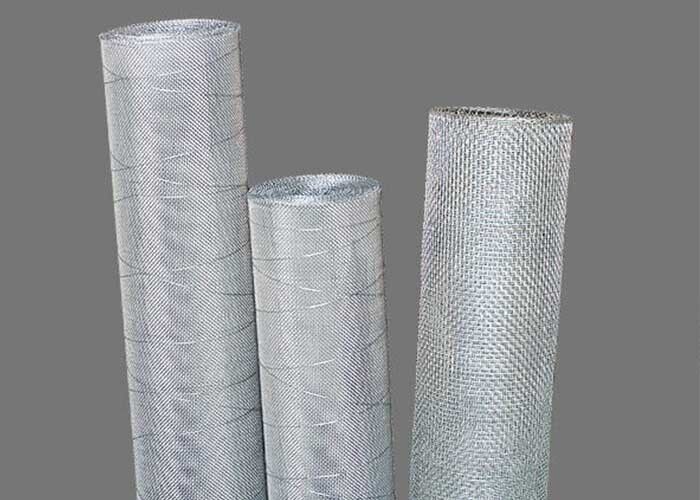

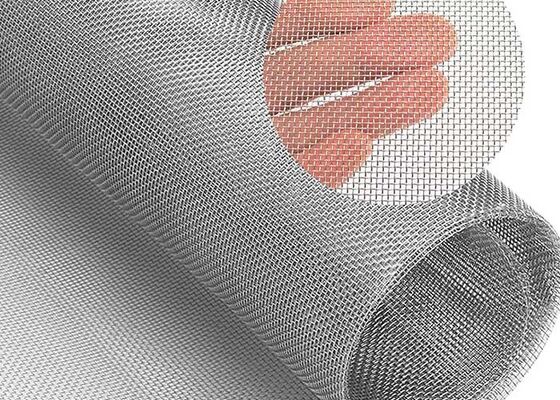

Galvanized woven wire mesh for filtration and screening
Galvanized woven wire mesh is one of the most inexpensive options in window screen and filtration applications. The mesh is coated with zinc to protect it from rust and corrosion. The galvanized wire mesh has corrosion resistance and has a longer service life than plain steel wire mesh.
Typical applications including: window screens, safety guards, sieve grains, oil strainers, vibrating screen, liquid and gas filtration.
Types of Galvanized Woven Wire Mesh
| Mesh count | Wire Dia. (mm) | Opening (mm) |
| 3 | 1.6 | 6.87 |
| 4 | 1.2 | 5.15 |
| 5 | 0.95 | 4.13 |
| 6 | 0.8 | 3.43 |
| 8 | 0.7 | 2.43 |
| 10 | 0.6 | 1.94 |
| 12 | 0.55 | 1.56 |
| 14 | 0.14 | 1.4 |
| 16 | 0.38 | 1.24 |
| 18 | 0.3 | 1.11 |
| 20 | 0.27 | 1 |
| 22 | 0.25 | 0.9 |
| 24 | 0.23 | 0.83 |
| 26 | 0.2 | 0.78 |
| 28 | 0.18 | 0.73 |
| 30 | 0.15 | 0.7 |
| 35 | 0.14 | 0.59 |
| 40 | 0.14 | 0.5 |
| 50 | 0.12 | 0.39 |
| 60 | 0.12 | 0.3 |
For more information on Galvanized Wire Mesh, please contact us today.
